Model PMDX-ESTOP-STD2NC

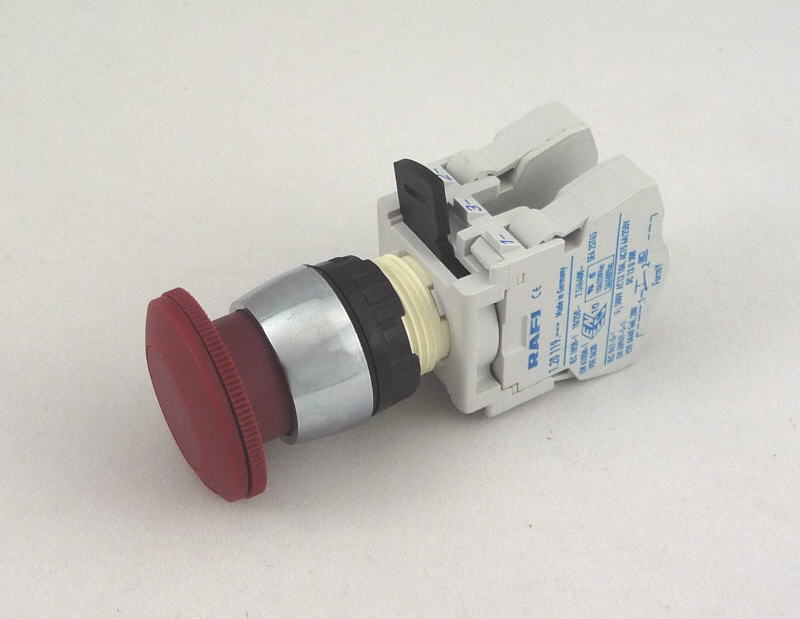

Standard Emergency Stop Switch, with 2 N/C contacts Overall view

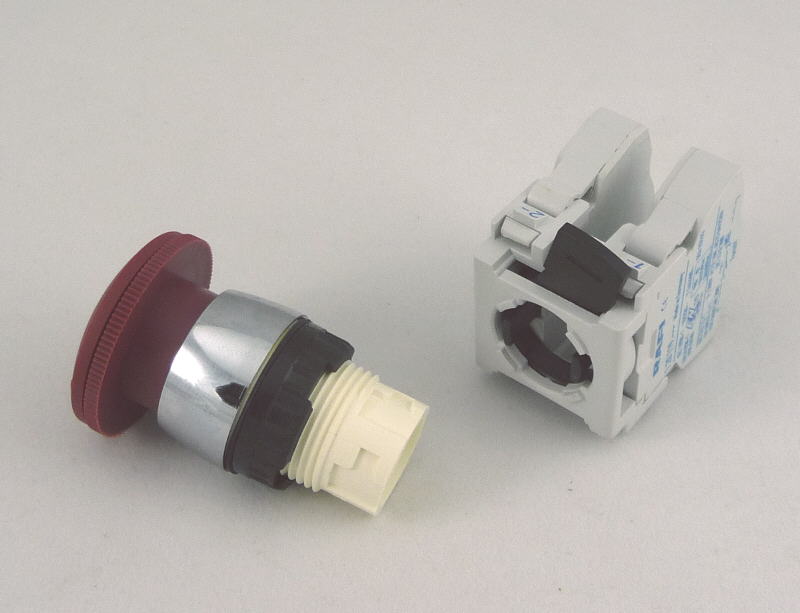

Standard Emergency Stop Switch, with 2 N/C contacts Parts view

The PMDX-EStop-Std2NC is a standard sized emergency stop switch with two normally closed contacts

• High quality materials and construction for smoother operation and dependable latching
• Button latches when pressed, twist to release
• Button is 40 millimeter in diameter
• Fits a 22 millimeter round panel hole
• Works in panels up to 0.250" thick
• Needs 2.375" depth behind panel
• Button body detaches from switch module for easier assembly through panel
• Provides two normally-closed switchs
• Rated for 250 VAC and 10 Amperes
• Switch contacts are "double break" for failsafe operation
• Screw terminal connections for wire attachment

For an alternate version with one normally-closed and one normally-open switch, see the PMDX-ESTOP-STD

The PMDX-EStop-Std2NC is priced at $21.00

For International customers or for alternate payment options - click HERE
